B01 Testshot

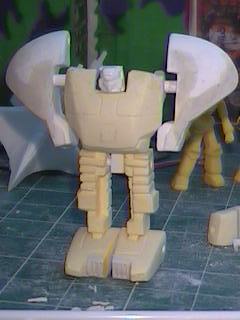

B01 in robot mode

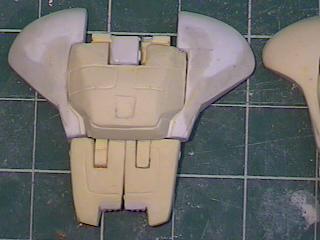

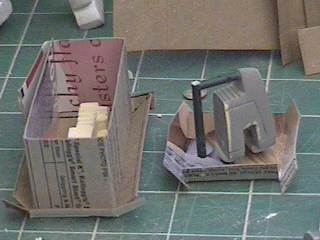

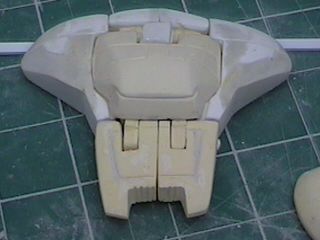

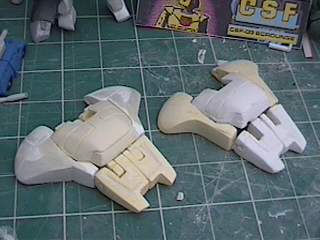

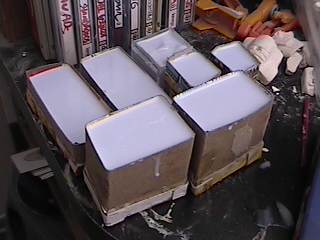

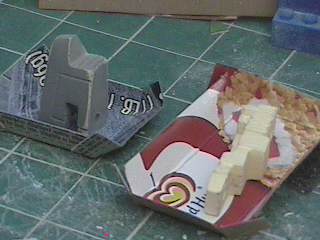

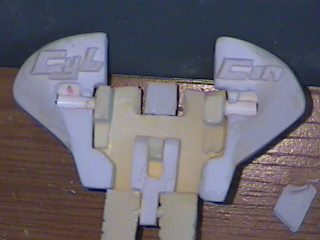

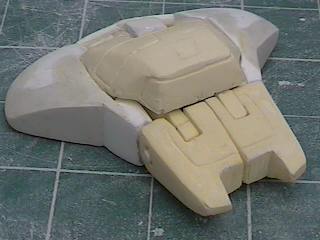

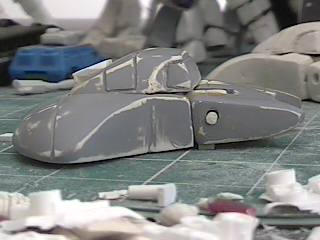

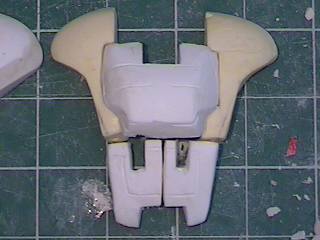

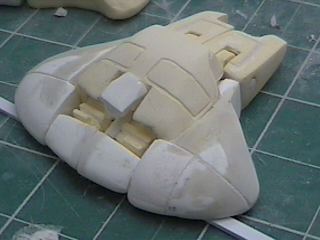

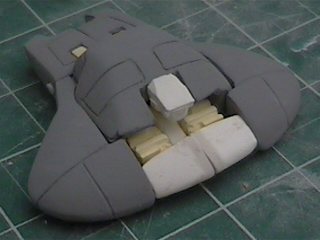

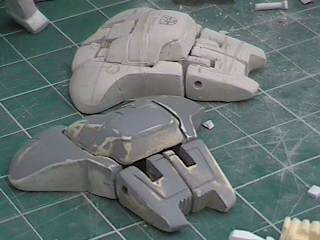

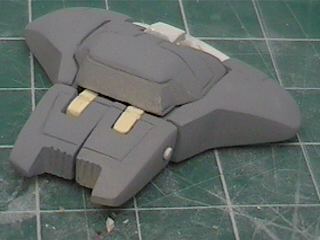

The step after making the clay prototype B00 was making testshots off it. I made molds of all the clay parts and then cast three complete copies in resin. These copies I named B01's. After they were made I destroyed the molds since I didn't need to make anymore exact copies of the original sculpey master. I took one B01 and further refined the form until the parts were nice and smooth and they lined up better. I changed the shape of the wings because the shoulders needed more reinforcement and the bulkier arms supported the internal shoulder mechanisms better. For a little while I considered molding a makeshift Cybcon logo into the undersides of the arms, but we decided against doing that. I primed the parts and sanded them down until they were nice and smooth and then I began making molds from this final resin master. Unlike a lot of resin casters out there, I don't use legos to make my mold boxes. I've found they leak too much. So I make my boxes from thin cardboard (like cereal boxes) and glue. I have more control over the shape of the molds that way.
